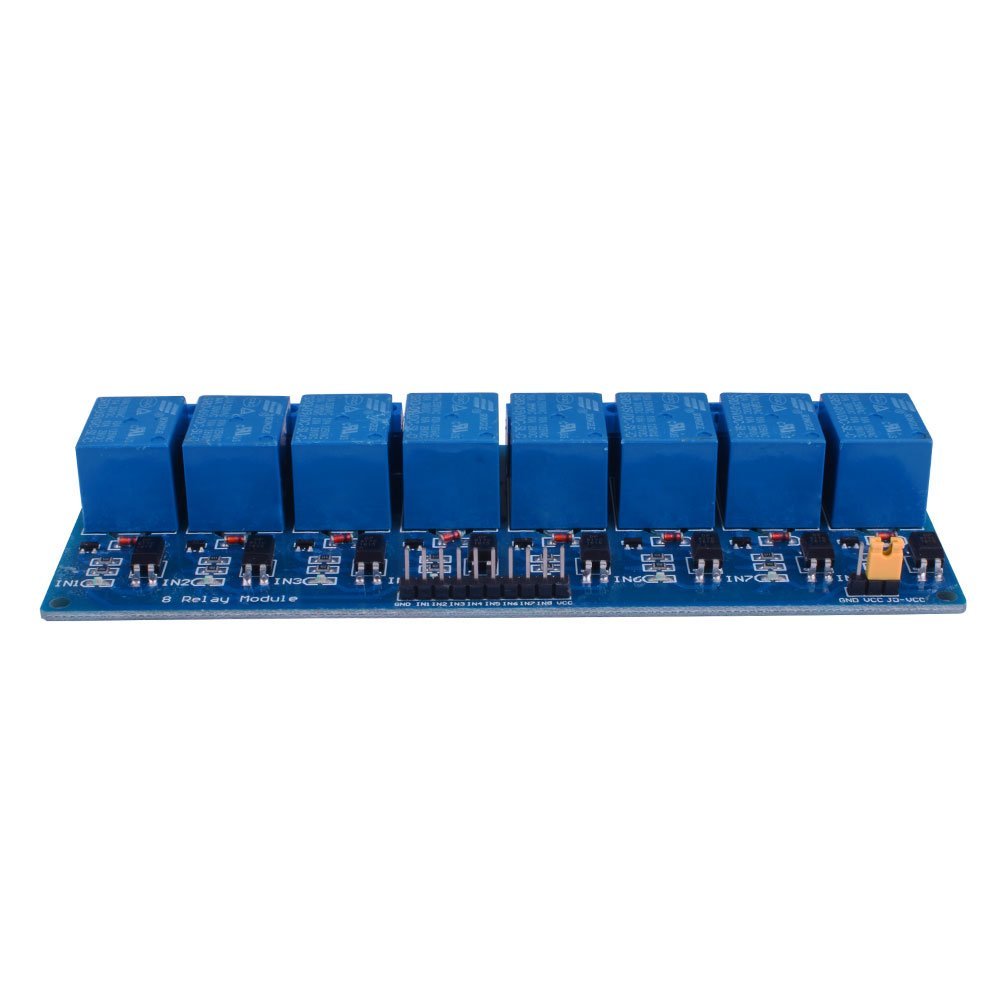

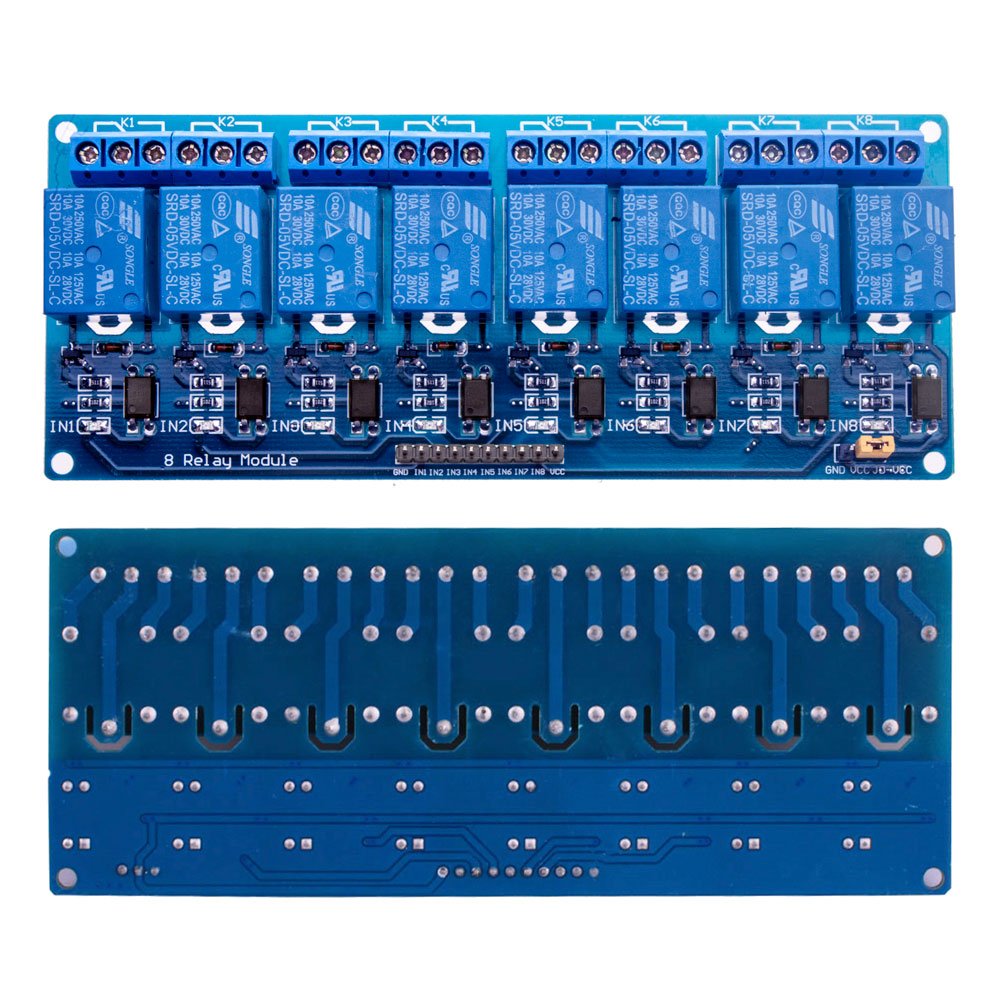

Smraza 5V 8 Channel DC Relay Module for Raspberry Pi

DC 5V 8 Channel Relay interface board. Use it to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller( , Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Completely separate control unit for the relays switch device. Separate supplies provides some extra protection against mains volts getting back into the control unit like, Raspberry and MCU. Features: 100% Brand New Working voltage: 5V Relay output maximum contact is AC110V ~ AC250V 10A and DC30V 10A Controllers includes, AVR, PIC, ARM, PLC, etc. 8-channel relay interface board which can be controlled directly by a wide range of microcontrollers Standard interface can be directly connected with microcontrollers Red working status indicator for each relay module It can control various appliances and other equipments with large current Widely used for all MCU control, industrial sector, PLC control, smart home control Size: 5.43in x 2.2in x 0.7in/13.8cm x 5.6cm x 1.85cm-(L x W x H) Package Included: 8-Channel 5v DC Isolated Relay Switch Module x1 Smraza is a professional manufacturer on making all electronics components based on Raspberry Pi.If you have any technical questions, please contact us by email to get support.

• Standard interface that can be controlled directly by microcontroller ( Raspberry Pi,8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
• 5V 8-Channel Relay interface board, Each Relay Driving Current: 15 - 20mA， Each Relay Operate Power: DC 5V.
• Equiped with 2 high-current relay : DC (30V 10A),AC (250V 10A).
• Indication LED's for Relay output status.
• Package includes:1* 8-Channel 5V DC Isolated Relay Switch Module.
